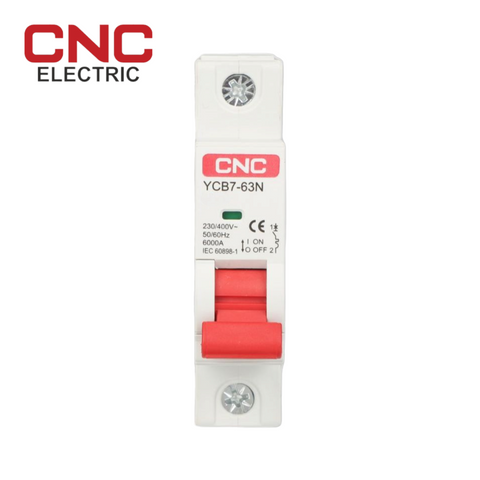

CNC YCB7-63N 1P AC MCB Mini Circuit breaker
₨ 450
The CNC YCB7-63N 1P MCB offers reliable protection against overloads and short circuits in AC electrical systems. Compact and DIN rail mountable, it supports up to 63A and is ideal for residential, commercial, and industrial applications.
The CNC YCB7-63N 1P AC MCB Mini Circuit Breaker is designed to provide essential overload, short-circuit, and isolation protection in low-voltage AC circuits. With a rated current capacity up to 63A, this compact 1-pole breaker ensures the safety and stability of your power systems in residential, commercial, and industrial environments.
Operating at 230V/400V AC and built to withstand up to 6000A breaking capacity, it protects circuits from unexpected electrical faults. The MCB is DIN rail mountable (EN 60715 – 35mm) and features a fast clip mechanism for quick and secure installation. Flexible wiring options from the top or bottom allow easy integration into various systems.
Whether you’re upgrading a home panel or safeguarding industrial machinery, the CNC YCB7-63N offers dependable performance, compact design, and efficient protection.
Key Features:
- Brand: CNC Electric
- Model: YCB7-63N
- Poles: 1P – Single-line protection
- Rated Current: 6A – 63A
- Functionality: Overload, short circuit, and isolation protection
- Rated Voltage (Ue): 230V/400V AC
- Rated Insulation Voltage (Ui): 500V
- Frequency: 50/60Hz
- Installation: DIN Rail (EN 60715 – 35mm) with fast clip device
- Wiring Method: Top or bottom wiring supported
Specification |
Details |
|---|---|
| Brand | CNC Electric |
| Model | YCB7-63N |
| Number of Poles | 1P |
| Rated Current | 6A – 63A |
| Rated Voltage | 230V/400V AC |
| Rated Frequency |
