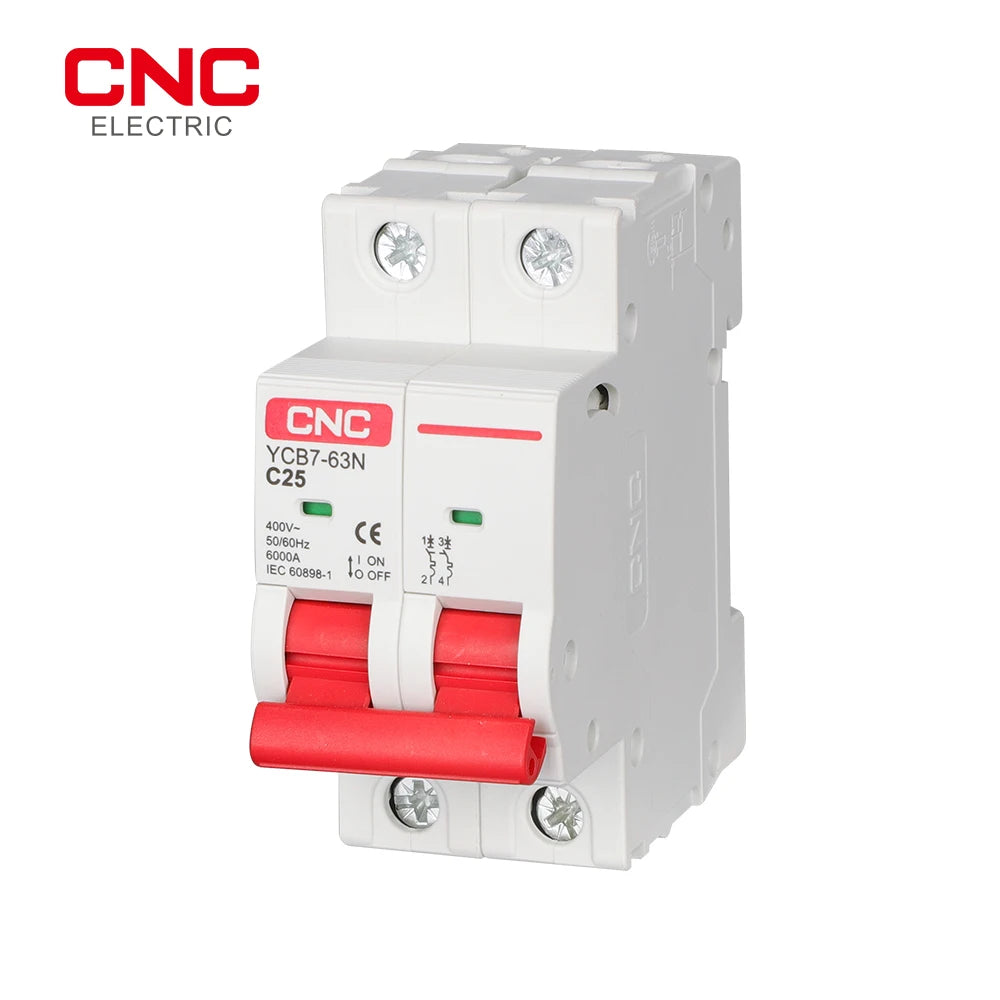

CNC YCB7-63N 2P AC MCB Circut Breaker
₨ 900
The CNC YCB7-63N 2P AC MCB is a compact, high-performance circuit breaker offering overload, short-circuit, and isolation protection. Rated up to 63A with a 6000A breaking capacity, it is suitable for residential, commercial, and industrial applications with 230V/400V AC systems.
The CNC YCB7-63N 2P AC MCB Circuit Breaker is designed for safe and reliable protection of electrical systems against overloads, short circuits, and isolation faults. With a rated voltage of 230V/400V AC and a rated breaking capacity of 6000A, this breaker meets the stringent IEC/EN 60898-1 standard, making it ideal for residential, commercial, and light industrial applications.
This 2-pole miniature circuit breaker offers enhanced safety by disconnecting both the live and neutral lines, and supports current ratings from 6A up to 63A, making it adaptable to a wide range of installations. Its compact design allows for space-saving integration into DIN rail-mounted distribution boards and panels.
Whether you’re protecting a home, office, shop, or industrial system, the CNC YCB7-63N delivers dependable performance and peace of mind.
Key Features:
- Brand: CNC Electric
- Model: YCB7-63N
- Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 2P (also available in 1P, 3P, 4P)
- Rated Current (In): 6A to 63A
- Rated Voltage (Ue): 230V/400V AC
- Rated Frequency: 50/60Hz
- Rated Insulation Voltage (Ui): 500V
- Breaking Capacity (Icn): 6000A
- Standard Compliance: IEC/EN 60898-1
- Mounting Type: DIN Rail (EN 60715 – 35mm)
- Wiring Method: Top or bottom wiring options
Specification |
Details |
|---|---|
| Model | YCB7-63N |
| Number of Poles | 2P |
| Rated Current | 6A – 63A |
| Rated Voltage | 230V/400V AC |
