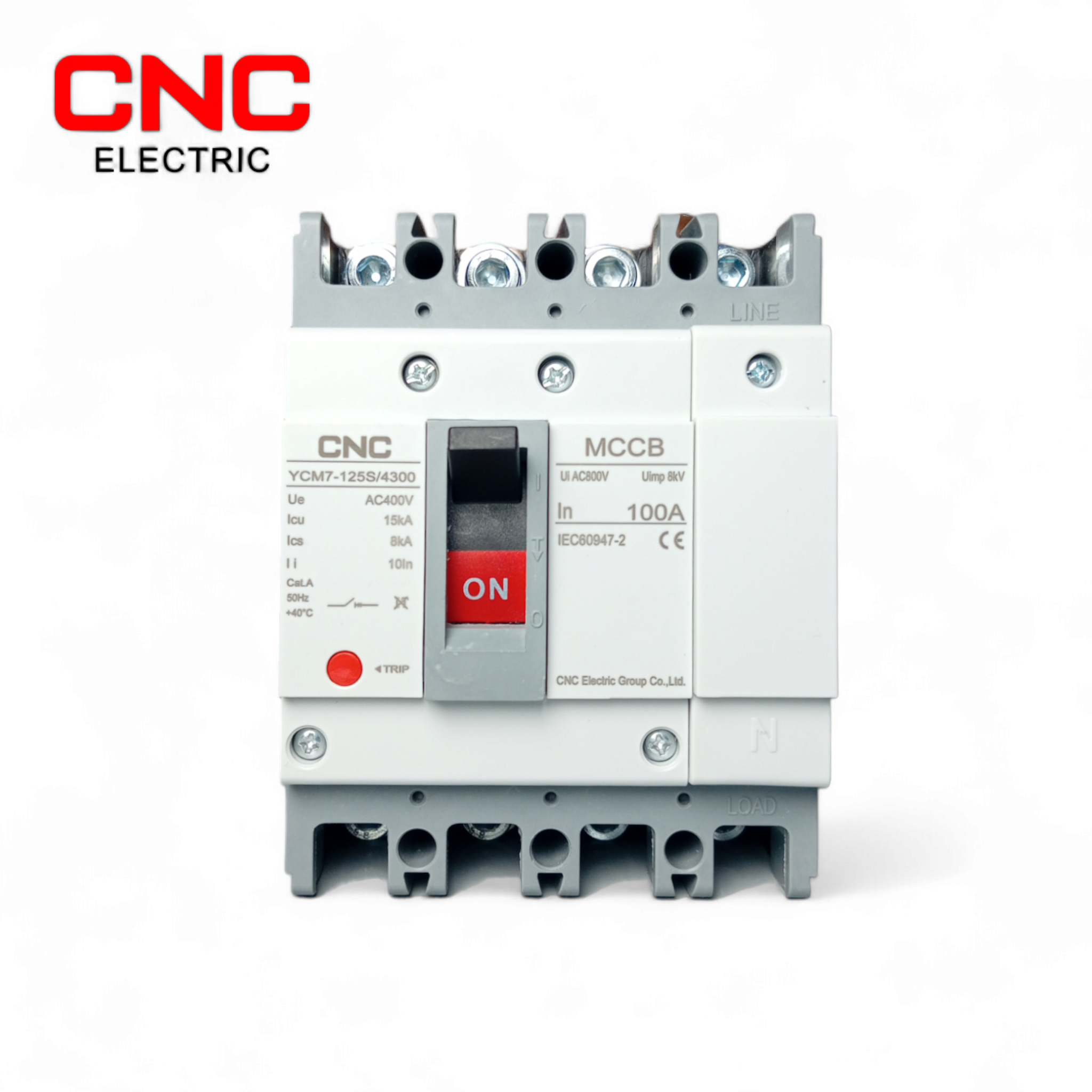

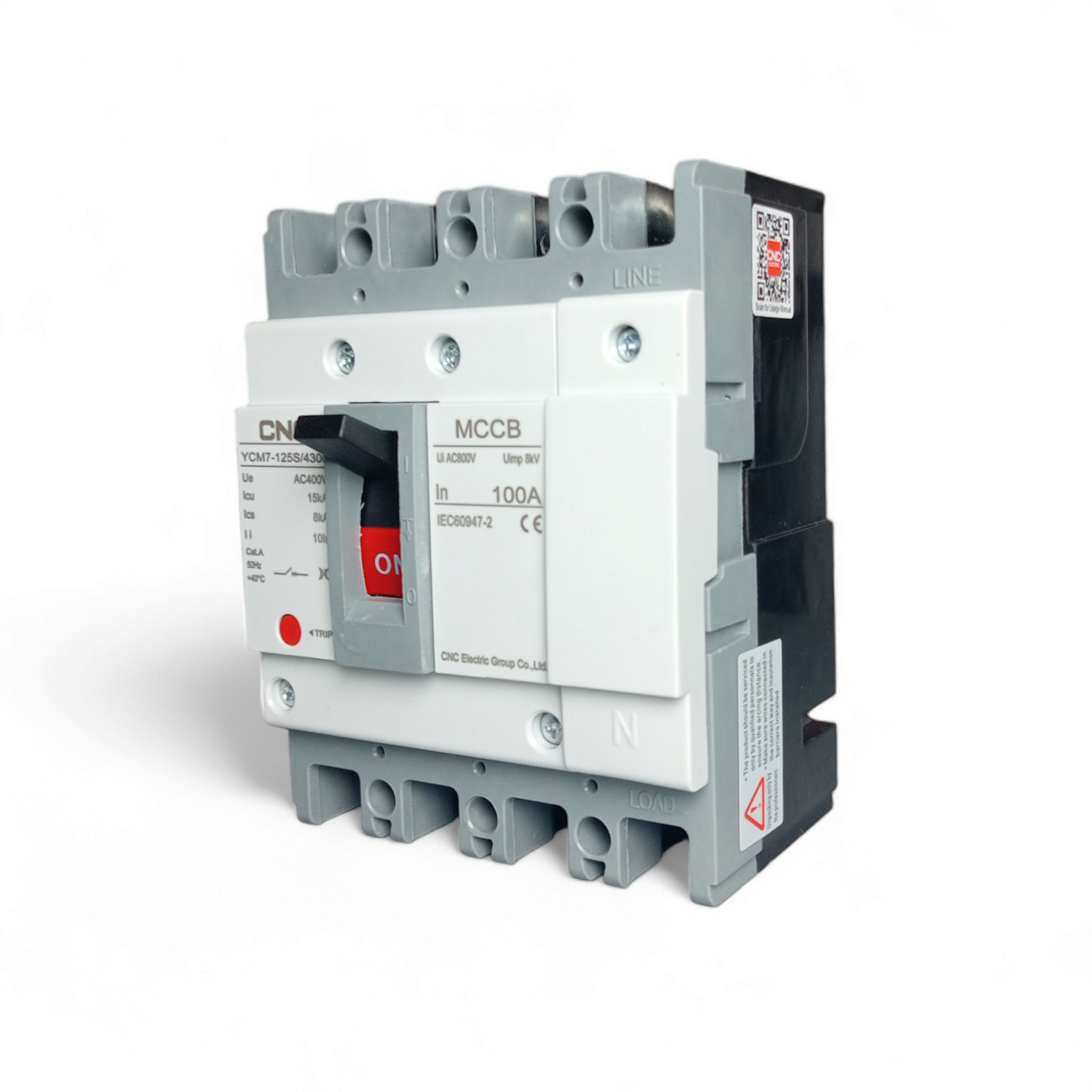

CNC YCM7-125 100A MCCB Three Phase AC Breaker

The CNC YCM7-125 100A MCCB Three Phase AC Breaker is a durable molded case circuit breaker built to safeguard industrial, commercial, and residential power distribution systems. With a 100A rated current and 4-pole configuration, it ensures effective protection against overloads, short circuits, and under-voltage conditions.

Equipped with a 15kA short-circuit breaking capacity, it reliably interrupts fault currents, reducing risks of equipment damage and ensuring safe operation. Its compact design with a short arcing distance makes it suitable for space-limited installations, while supporting both vertical and horizontal mounting for flexible integration.

Certified under IEC60947-2 standards, the CNC YCM7-125 offers long-term durability and compliance, making it ideal for AC power networks up to 400V with insulation voltages up to 800V.

Protect your motors and circuits with this efficient, compact, and reliable MCCB solution from CNC.

Key Features:

• Rated Current: 100A – Protects circuits up to 100A load
• Number of Poles: 4P – Suitable for three-phase and multi-phase systems
• Rated Voltage: AC400V – Optimized for standard AC distribution networks
• Breaking Capacity: 15kA – Safely interrupts high fault currents
• Rated Insulation Voltage: AC800V – Ensures reliable high-voltage operation
• Compact Design: Small size with short arcing distance
• Flexible Installation: Vertical or horizontal mounting options
• Reliable Protection: Overload, short-circuit, and motor safety with under-voltage support
• Compliance: Meets IEC60947-2 international standards
