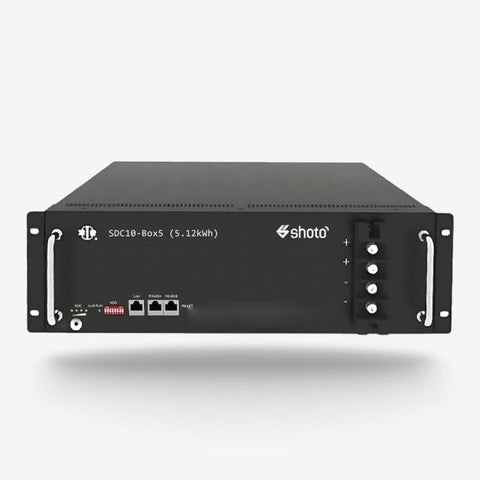

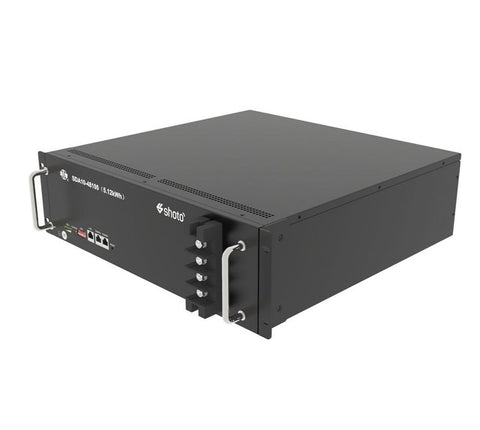

SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20 - Image 2
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20 - Image 3
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20 - Image 4
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20 - Image 5
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20 - Image 6
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20 - Image 7
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20 - Image 8
SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20 - Image 9

SHOTO SDC10-Box5 51.2V 100Ah LiFePO₄ Lithium-Ion Battery – 5.12kWh – IP20

₨ 260,000

Category

Power your home or business with the SHOTO SDC10-Box5 — a compact, high-performance 51.2V 100Ah LiFePO₄ battery offering 5.12kWh capacity (4.86kWh usable). Ideal for solar, backup, and off-grid use, it features a smart BMS, 6000+ cycle lifespan, and compatibility with top inverters like Deye, Growatt, and Victron.

  • High Capacity: 5.12kWh nominal energy (4.86kWh usable) with a 51.2V, 100Ah LiFePO₄ configuration.
  • Powerful Output: Supports a maximum output of 4.1kW and a peak of 5.4kW for 10 seconds.
  • Long Lifespan: Over 6000 cycles at 80% Depth of Discharge (DOD) with ≥97% charge/discharge efficiency.
  • Smart BMS: Ensures optimal performance, safety, and battery longevity.
  • Versatile Installation: IP20-rated enclosure for rack or wall-mounted setups.
  • Wide Compatibility: Works with leading inverters including Deye, Growatt, Victron, and more.
  • Safe and Certified: Meets UL1973, IEC62477, IEC62619, CE-EMC, and UN38.3 standards.
  • Wide Operating Range: Functions in temperatures from -20°C to 50°C and altitudes up to 4000m
Parameter Value
Model SDC10-Box5
Battery Type LiFePO₄ Lithium-Ion
Cell Type 100Ah LFP Prismatic Cell
Number of Modules 1
System Nominal Energy 5.12kWh
Available System Nominal Energy 4.86kWh
Nominal Voltage 51.2V
Operating Voltage Range 45.0 – 56.4V
Max. Output Power 4.1kW
Peak Output Power 5.4kW (10s)
Max. Charging Current 50A
Max. Discharge Current 100A
Charge and Discharge Efficiency ≥97%
Dimensions (W×H×D) 442×135×440mm
Weight 40kg
Communication CAN/RS485
Installation Rack/Wall Mounted
Enclosure Rating IP20
25°C Cycle Life ≥6000 Cycles @ 80% DOD, 80% EOL
Operating Temperature Charge: -5~45°C, Discharge: -20~50°C, Recommended: 15~35°C
Operating Humidity 5%–95% (Non-Condensing)
Cooling Mode Natural Cooling
Operating Altitude ≤4000m
Certifications UL1973, IEC62477, IEC62619, CE-EMC, VDE2510-50, CEI 0-21, UKCA, UN38.3
Matching Inverters Deye, Growatt, Goodwe, Victron, Sofar, SMA, SRNE, Lux, Solis, TBB, Soruide, Megarevo, Sungrow, Voltronic
