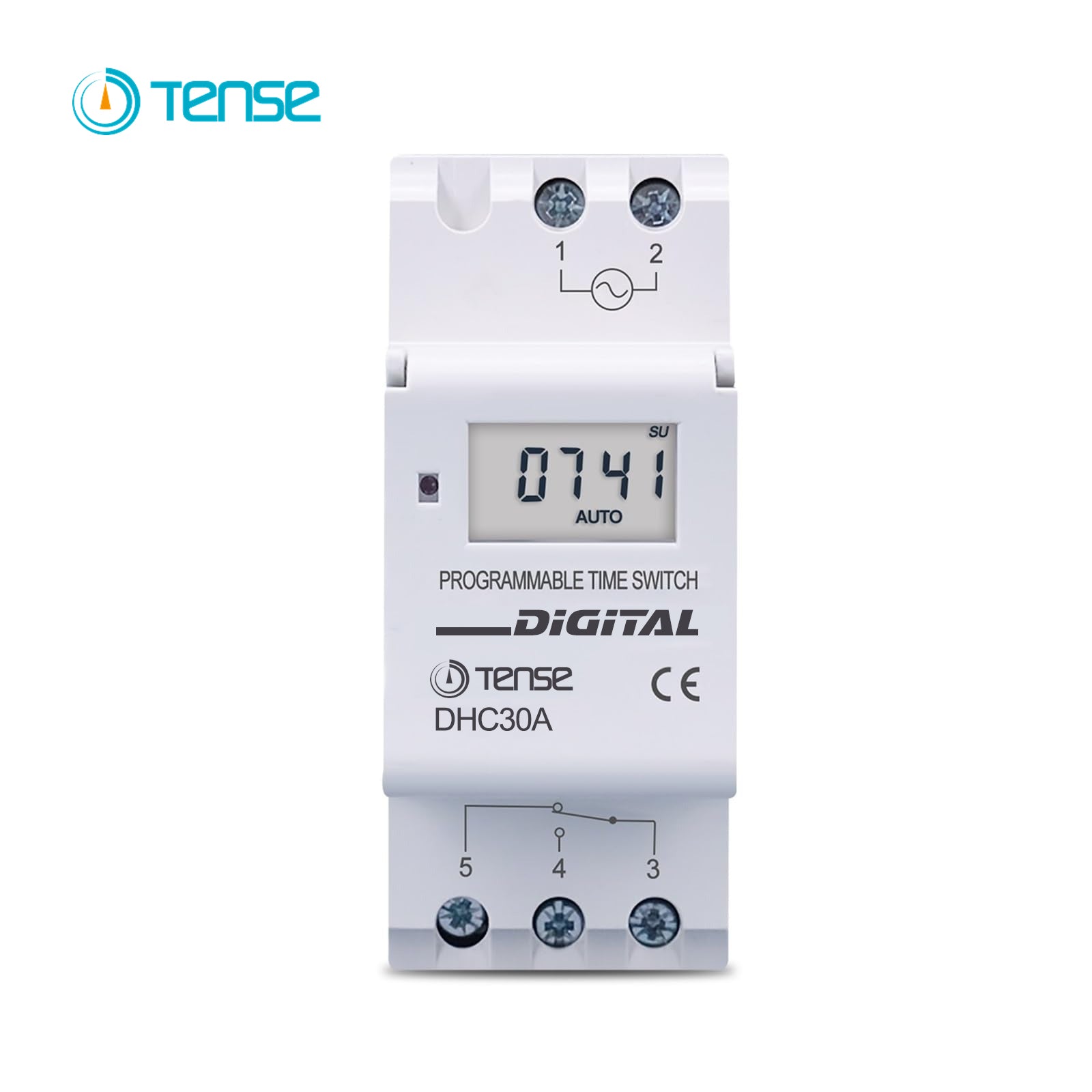

Tense 30A Weekly 7 Days Programmable Digital TIME SWITCH Timer (NO/NC)
Original price was: ₨ 2,299.₨ 2,199Current price is: ₨ 2,199.
The Tense DHC30A 30A Weekly Programmable Timer offers precise scheduling with LCD display, 16 ON/OFF settings, and battery backup. Designed for lighting, signage, and industrial equipment, it ensures energy efficiency, automation, and reliable performance for residential, commercial, and agricultural use.
chinery, HVAC systems, and agricultural equipment.
Built with a high-precision industrial-grade chip and strong anti-jamming capability, the Tense DHC30A ensures accurate and reliable operation. Its LCD display shows real-time clock functions with hour, minute, and second precision, along with ON/AUTO/OFF status for easy monitoring.
With a 30A relay capacity and wide operating voltage (200~240V AC), it is suitable for demanding applications. A built-in lithium battery provides 150 hours of backup, ensuring uninterrupted operation during power outages. Designed for durability, it operates efficiently in temperatures from -10°C to 55°C.
This timer switch is a smart and energy-efficient solution for residential, commercial, and industrial automation needs.
Key Features:
- Programmable Settings: Weekly cycle with 16 ON/OFF schedules
- Minimum Interval: 1-minute precision for flexible scheduling
- Display: LCD showing real-time (Hour/Minute/Second) and ON/AUTO/OFF status
- Battery Backup: Lithium battery with 150 hours backup time
- Relay Output: 250VAC, 15A/25A for reliable switching capacity
- Power Supply: 200–240VAC, 50/60Hz with ≤5W consumption
- Durability: Anti-jamming chip, works in -10°C to 55°C temperature range
- Applications: Ideal for lights, signage, production machinery, HVAC, agriculture, and aquaculture systems
Specification |
Details |
|---|---|
| Brand | Tense |
| Model | DHC30A |
| Type | Weekly Programmable Digital Timer (NO/NC) |
| Rated Voltage | AC220V, 50/60Hz, 85%–110% |
| Rated Current | 30A |
| Programmable Cycles | 16 ON/OFF per day or per week |
| Minimum Interval | 1 minute |
| Display | LCD (Hour/Minute/Second, ON/AUTO/OFF) |
| Battery Backup | 150 hours (Lithium battery) |
| Relay Output | 250VAC, 15A/25A |
| Power Consumption | ≤ 5W |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 35% – 85% RH |
